INTEGRATORS

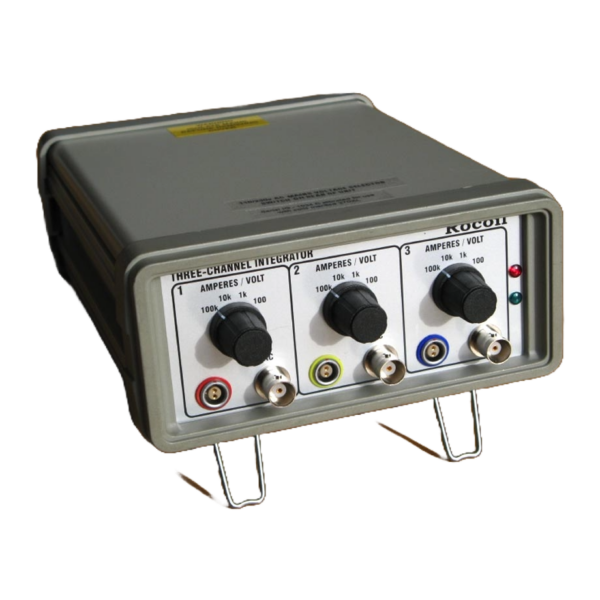

Rocoil 7000 Series Rogowski Coil Integrators

The Rocoil® 7000 series integrators can be used in conjunction with both flexible and rigid Rogowski coils to provide accurate current measurement over a range from less than 1 amp to over 1 million amps in a compact and portable measuring system which is simple to use. Type 7000 integrators are available in single-channel and three-channel versions.

Request a Quote Download Datasheet

7000 Series Rogowski Coil Integrator Features

Three channel or single-channel integrator
Internal rechargeable battery
Powered from either 230V or 120V mains supply
Can measure up to hundreds of kA
Sensitivity can be specified by the user
Switch selection of up to four sensitivity values
Input and output protection against surges
Excellent low frequency response
Bandwidth to greater than 60kHz
Withstands very large overloads for an indefinite time
Sensing coils can be replaced without the need for recalibration
Flexible Rogowski coils can be fitted without 'breaking' the conductor
True RMS, Channel Summing and Overload Indication available as special options

Product Options

7341: Three-channel version.

7141: Single-channel version.

/RM: Remote control switching between channels.

/RMS: RMS Output: An additional output for each channel equal to the true RMS value of the AC output.

/OL:
Overload Indication: An indicator for each channel which shows when the
output voltage is close to the maximum for the integrator.

/SUM: Summing Option: An output at the rear of the integrator which provides an instantaneous sum of the three outputs.

/5R: Five ranges instead of four.

Sensitivity ranges:
We can supply range sensitivities to your specification.
Standard ranges 100kA-10kA-1kA-100A/V for flexible coils and 10kA-1kA-100A-10A/V for rigid coils.

For more information download the Rocoil 7000 Series Rogowski Coil Integrators datasheet or request a quote
