Rocoil 'Wall-Mounted' Rogowski Coil Current Measuring System

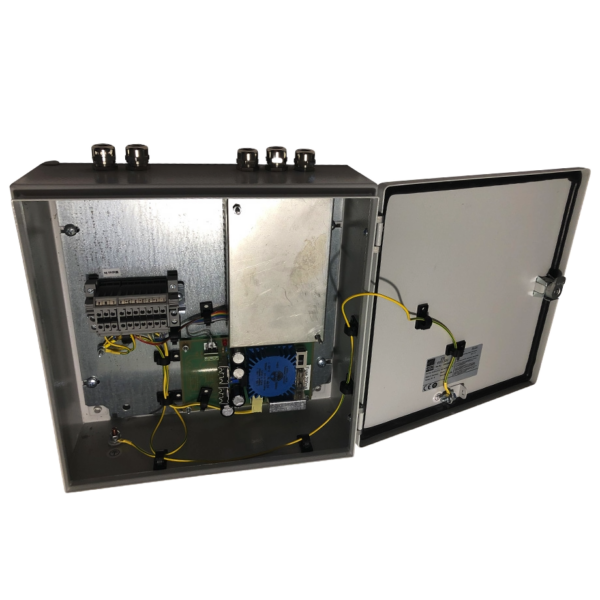

The Rocoil® Wall-mounted system is a three-channel integrator that can be used in conjunction with either flexible or rigid Rogowski coils to provide accurate current measurement in an industrial environment. The integrators are mounted in a steel cabinet with a hinged door. The output is a current with maximum value of 20mA peak (14mA RMS).

Request a Quote Download Datasheet

Rocoil 'Wall-Mounted' Rogowski Coil Current Measuring System Features

Three-channel Integrator enclosed in a steel cabinet

Can be used with two coils for each input to give the sum (or difference) of the currents in two conductors

Can measure up to hundreds of kA

Excellent low-frequency response

Input and output protection against surges

Flexible Rogowski coils can be fitted without 'breaking' the conductor

Current-driver analogue output

Powered from either 230V or 110 V mains supply

Sensitivity can be specified by the user

Withstands very large overloads for an indefinite time

Sensing coils can be replaced without the need for re-calibration

Product Options

/24: Version powered from a 24V supply.
/DUAL Two inputs instead of one. Enables the currents in two separate conductors to be summed.
Sensitivity range: This can be specified by the user as Amps RMS / 14mA RMS. Sensitivity values from 10A to more than 100kA can be provided.

For more information download the 'Wall-Mounted' Rogowski Coil Current Measuring System datasheet or request a quote

Request a Quote Download Datasheet
